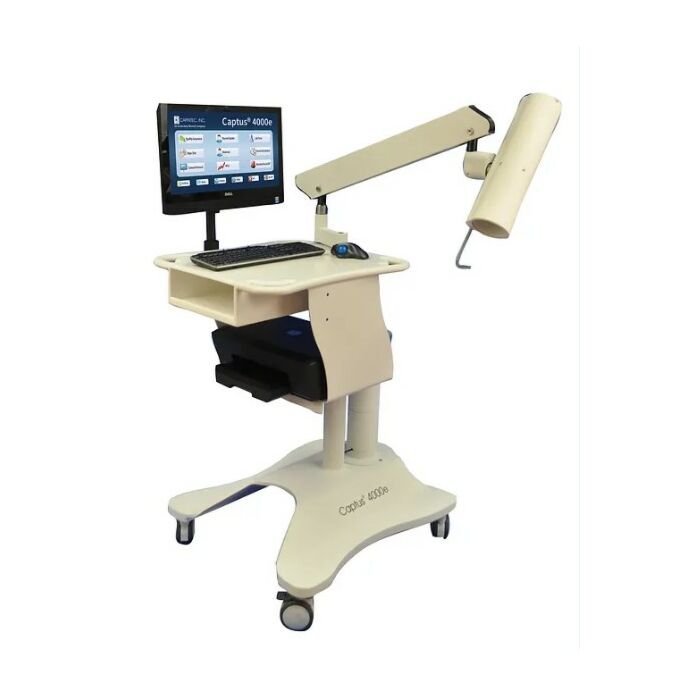

Thyroid Uptake System

Thyroid Uptake System

Category >> Medical Equipment

Detector Type: 2″ diameter 14-pin NaI(Tl) detector with 1.55″ deep x 0.66″ diameter well

Collimator: Flat field collimator meeting ANSI N44.3 and IAEA standards

Multichannel Analyzer (MCA): 1024 channels; auto and manual calibration; maximum count rate: 200,000 cps at 5%

Measurement Modes: Real time, live time, total counts; timed activity mode with programmable repetitive measurements

Quality Assurance Tests Automated: energy calibration, zero adjust, gain adjust, detector efficiency, detector resolution, chi-square, constancy, MDA; Manual calibration available

Software Features: Predefined thyroid uptake protocols; supports capsule and liquid dose formats; predose measurement option; wipe tests with isotope identification; customizable reports

DICOM Interface Optional fully integrated interface for patient data, QC, and wipe tests

Computer: 20″ All-in-One Touch Screen Flat Panel Computer with Windows 10

Stand Dimensions: Closed Storage Position: 142 x 71 x 81 cm; Arm extends 91 cm horizontally; Vertical travel 64 to 160 cm

Weight: 154 kg (Uptake System); 186 kg (with 1″ Shielded Well); 245 kg (with 2″ Shielded Well)

Power Requirements: 120 V AC, 60 Hz, 2.6 AMP; 230 V AC, 50 Hz, 1.1 AMP; Isolation transformer included
